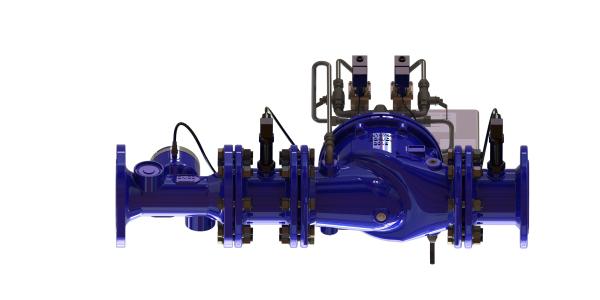

    EPOXY Coating SS304 Pilot Pressure Management Valve For Water Flow Regulation

    Ask Lasest Price
    Brand Name : AFC
    Model Number : P26D
    Certification : ISO9001
    Price : Price negotiable
    Payment Terms : L/C, T/T
    Supply Ability : Based on order
    Delivery Time : 20-60 days
    • Product Details
    • Company Profile

    EPOXY Coating SS304 Pilot Pressure Management Valve For Water Flow Regulation


    Intelligent Pressure Management Valve Dynamically Change Water Flow Regulator


    Description:


    P26 series is an intelligent pressure management valve. P26D can change the outlet pressure based on real time flow rate. You can define the curve between flow rate and outlet pressure. It can vary the pressure based on the flow rate and demand and keeps the pressure stable in the end of distribution system.


    Benefit:


    •Reduce water leakages, electricity consuming and man power.
    •Increase company profit by reducing Non-Revenue Water.
    •Water Management system from DMA (District Metering Area) to DMZ (District Metering Zone)

    Feature:


    24 VDC as power input
    • A touch screen to change settings in field easily.
    • Remote setting by SCADA through RTU is available.

    Modbus as data access protocal
    • Changing the pressure based on pre-set flow rate. Several flow rate with several pressure.


    Service Fields


    For water system, irrigation system.


    Technical Data:


    Size Range: DN50~DN800mm
    Pressure Ratings: 1.0Mpa; 1.6Mpa; 2.5Mpa
    Working Temperature:-10°C- 80°C Suitable
    Media: Water
    End connection: PN 10 / PN 16 / PN 25
    Consult Factory for other applications
    IP68 for water resistance
    Comply with BS EN 1074-5, ISO 5208, BS
    EN 12266-1, BS EN 558-1


    Series Description:


    Pressure Management Valve Type Series description
    Type 1Type 2Type 3
    Change Valve Pressure Based on TimeChange Valve Pressure Based on Flow RateChange Valve Pressure Based on Flow Rate Dynamically.

    Materials And Dimensions DN50-DN350



    Materials And Dimensions DN400-DN800
