    Hydraulic Cushion Non Clog Swing Check Valve

    Ask Lasest Price
    Brand Name : AFC,OEM
    Model Number : RDCS
    Certification : CE, NSF61/372
    Price : Price Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : Based on order
    Delivery Time : 45-60 days
    • Product Details
    • Company Profile

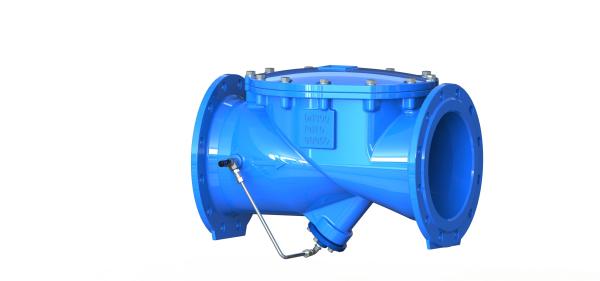

    Hydraulic Cushion Non Clog Swing Check Valve


    Hydraulic Cushion slow Closing Check Valve


    Description:


    The RDCS is a slow closing check valve with hydraulic cushion function. The bottom of the body is equipped with micro-resistance slow closing device, when the pump stops, the disc will fall quickly, before full closure about 15% of the trip ,the disc will close slowly through the special device without water hammer happened.



    Features:


    .Non-Clog Design

    .Reinforced Disc

    .One Moving Part

    .Drop Tight Seating

    .Non-slam Closure

    .Fusion Bonded Epoxy

    .Mechanical Disc & Position Indicator

    .Backflow Actuator


    General Applications:
    For general water supply, fire fighting,HVAC/ cooling & sewage system.

    Usually installed at the pump outlet.


    SizeDN50-DN600
    Working Temperature- 10C- 80C
    Pressure RatingPN10,PN16,PN25
    Connecting FlangePN10/PN16/ANSI 150LB
    Flow MediaWater and Waste Water

    Material:

    ItemPart NameMaterialStandard
    1BodyCast ironGJS500-7
    2O-ringRubberNBR
    3BonnetCast ironGJS500-7
    4BoltsSteel galvanizedCommercial
    5Slowly-closing steelSteel steelAISI304
    6SpringSteel steelAISI304
    7Slowly-closing tail plugSteel steelAISI304
    8Fixed nutBronzeZCuAL10Fe3
    9Plunger PipeSteel steelAISI304
    10Plunger rodSteel steelAISI304
    11WedgeSteel+rubber+nylon#45 steel+NBR/EPDM+Nylon
    12PinSteel steelAISI304
    13LiningRubberNBR+EPDM
    14Reinforced fibreNylonCommercial
    15WedgeCS/ Cast iron#45 steel/GJS500-7
    16Stainless pipeSteel steelAISI304
    17Needle valveSteel steelAISI304
