Ductile Iron UL FM Flanged Gate Valve Resiient Seated For Fire Protection Service

Suzhou Alpine Flow Control Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Ductile Iron UL FM Flanged Gate Valve Resiient Seated For Fire Protection Service from wholesalers

    Buy cheap Ductile Iron UL FM Flanged Gate Valve Resiient Seated For Fire Protection Service from wholesalers
    • Buy cheap Ductile Iron UL FM Flanged Gate Valve Resiient Seated For Fire Protection Service from wholesalers
    • Buy cheap Ductile Iron UL FM Flanged Gate Valve Resiient Seated For Fire Protection Service from wholesalers
    • Buy cheap Ductile Iron UL FM Flanged Gate Valve Resiient Seated For Fire Protection Service from wholesalers
    • Buy cheap Ductile Iron UL FM Flanged Gate Valve Resiient Seated For Fire Protection Service from wholesalers

    Ductile Iron UL FM Flanged Gate Valve Resiient Seated For Fire Protection Service

    Ask Lasest Price
    Brand Name : AFC, Multiple list and Private label is available
    Model Number : FRHF FRHG FRHX
    Certification : FM1120 UL 262
    Price : USD RMB
    Payment Terms : L/C, T/T
    Supply Ability : 60 days for 2 containers
    Delivery Time : Based on order
    • Product Details
    • Company Profile

    Ductile Iron UL FM Flanged Gate Valve Resiient Seated For Fire Protection Service


    FM/UL Gate Valve Ductile Iron Resilient Seated for Fire Protection Service


    Feature:


    The body of FM/UL gate valve is of the straightway type and when the gate is fully open, a waterway diameter equal the inside diameter of a mating pipe


    The body and bonnet shall be made of materials having strength, rigidity, and resistance to corrosion.


    An outside-screw-and-yoke valve is provided with a handwheel to facilitate operation


    Quality Control


    IQCCheck all incoming parts
    IPQCCheck the production process is qualified
    FQCAll valves are pressure tested
    OQCCheck the valve's outlook and packing

    Material

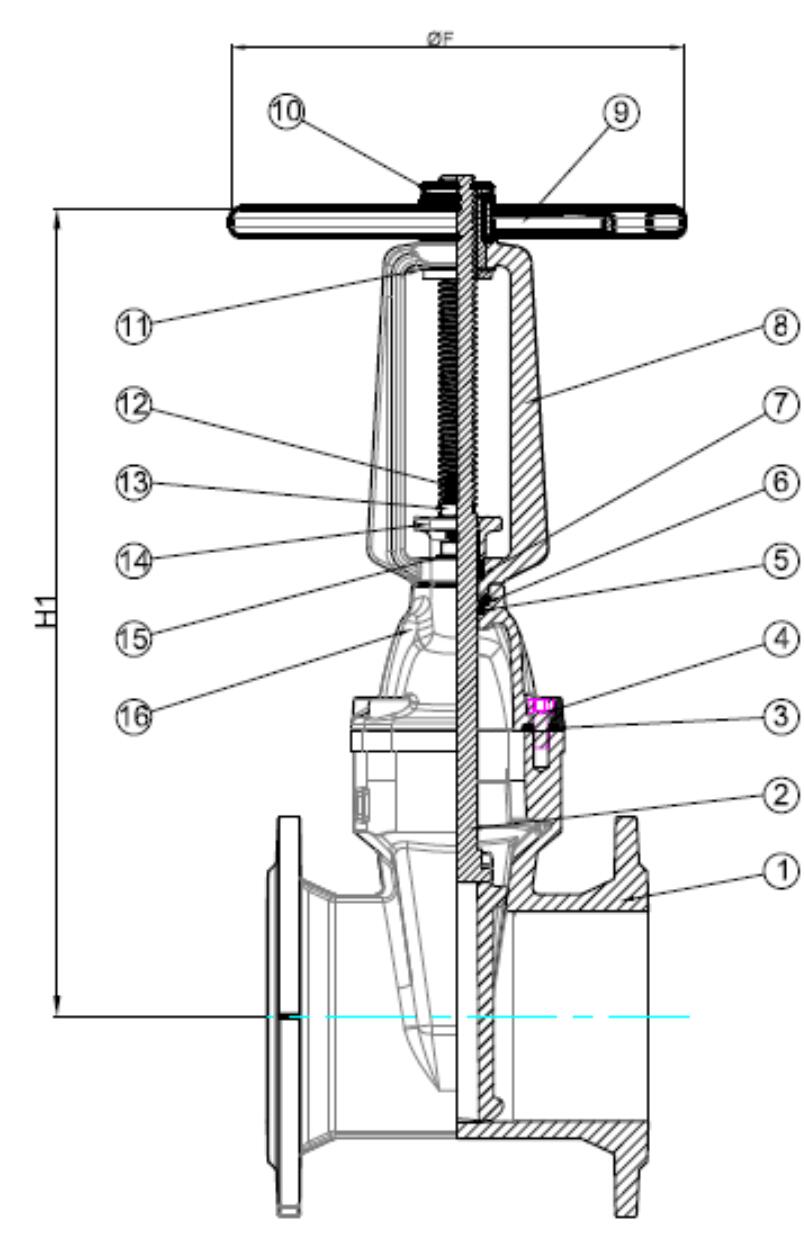

    Dimension

    SizeModel No.LΦDΦKnΦdH closeH close
    INMMFRH(F/G/X)mmPN16ANSIPN16ANSIPN16ANSImmmm
    250FRHF-00501781651521251214Φ194Φ19312382
    2 1/265FRHF-00651901851781451404Φ194Φ19338408
    380FRHF-00802032001911601528Φ194Φ19393480
    4100FRHF-01002292202291801918Φ198Φ19441544
    5125FRHF-0125254250-210-8Φ198Φ23559692
    6150FRHF-01502672852792402418Φ238Φ23598759
    8200FRHF-020029234034329529812Φ238Φ23743953
    10250FRHF-025033040040635536212Φ2812Φ268801140
    12300FRHF-030035645548341043212Φ2812Φ2610091319
