    Stainless Steel 304 Control Valve Accessories Modulating Float Control Pilot

    Ask Lasest Price
    Brand Name : AFC
    Model Number : P100
    Certification : ISO 9001
    Price : Price negotiable
    Payment Terms : L/C, T/T
    Supply Ability : Based on order
    Delivery Time : 10-60 days
    • Product Details
    • Company Profile

    Stainless Steel 304 Control Valve Accessories Modulating Float Control Pilot


    Stainless Steel 304 Control Valve Accessories Modulating Float Control Pilot


    Description:


    The P100 is a modulating float control pilot. It can help A100 Float Valve maintains a relatively constant level in storage tanks and reservoirs by admitting flow into the tank in direct proportion to the flow out of the tank. It is a hydraulically operated, pilot controlled, diaphragm valve. The float operated pilot control is installed at the high liquid level in the reservoir and is connected via tubing or pipe to the main valve. As the liquid level changes, the float control proportionally opens or closes the main valve, keeping the liquid level nearly constant.

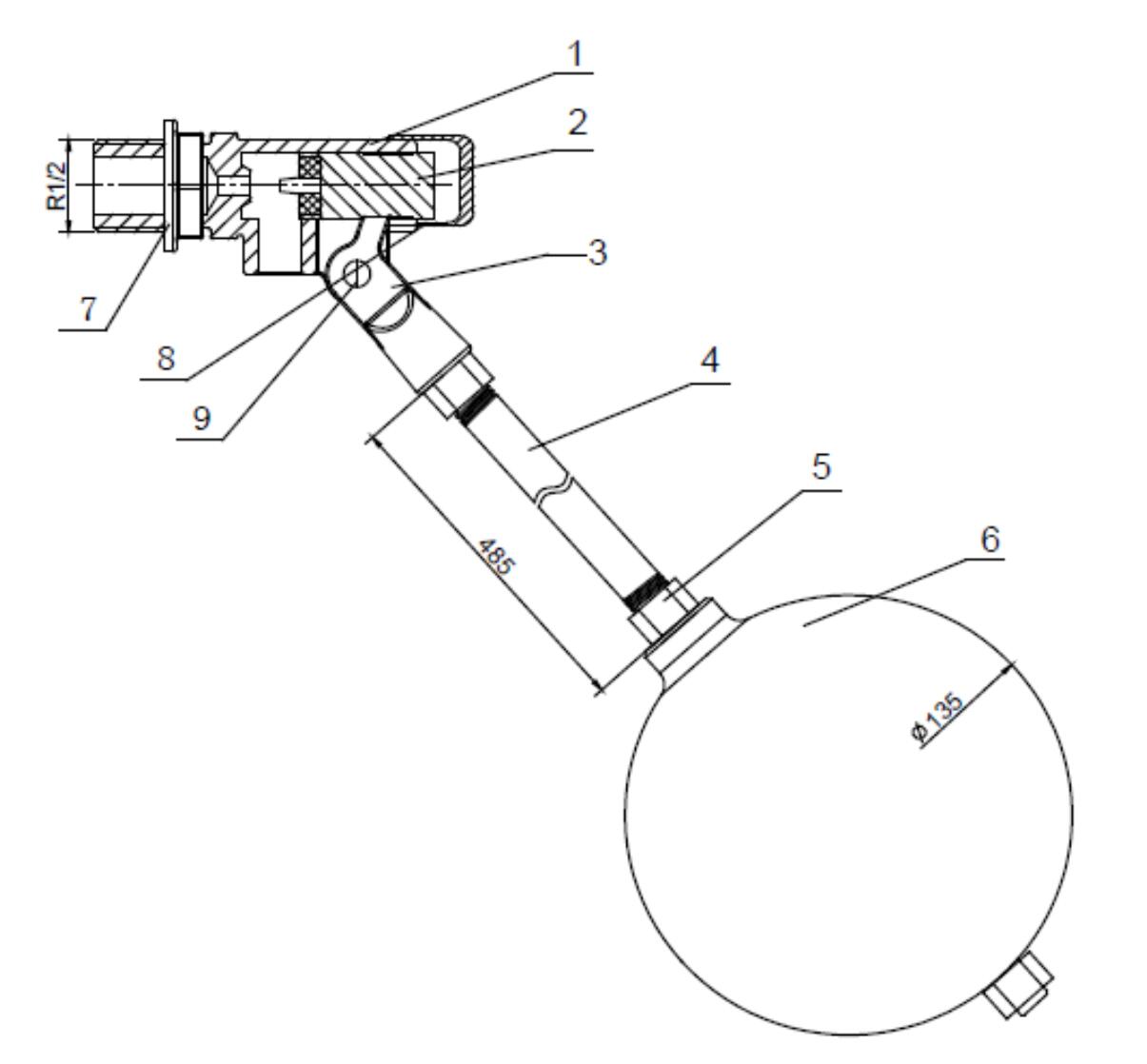

    No.Part NameMaterialStardard
    1BodyStainless SteelAISI 304
    2DiscStainless Steel+RubberAISI 304+EPDM
    3YokeStainless SteelAISI 304
    4RodStainless SteelAISI 304
    5NutStainless SteelAISI 304
    6FloatStainless SteelAISI 304
    7Jam NutStainless SteelA2
    8BonnetStainless SteelA2
    9ScrewStainless SteelA2
