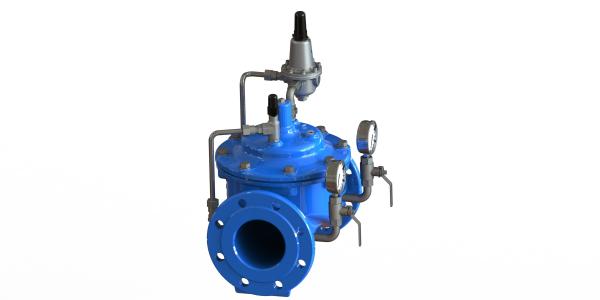

    Ductile Iron Pressure Reducing Control Valve With Stainless Steel Pilots

    Ask Lasest Price
    Brand Name : AFC OEM
    Model Number : A200
    Certification : EN1074-5
    Price : Price negotiable
    Payment Terms : L/C, T/T
    Supply Ability : Based On order
    Delivery Time : 15-60 days
    • Product Details
    • Company Profile

    Ductile Iron Pressure Reducing Control Valve With Stainless Steel Pilots


    Ductile Iron Pressure Reducing Control Valve With Stainless Steel Pilots And Gauge Kits


    Description:


    Pressure Reducing Valve can automatically reduce a higher inlet pressure to a steady lower downstream pressure, no matter how flow rate and/or inlet pressure changes. This valve is an accurate, pilot-operated regulator capable of holding downstream pressure to a pre-determined limit when downstream pressure exceeds the pressure setting of the control pilot, the main valve and pilot valve close drip-tight.


    Feature:


    Accurate, stable control from no-flow to full flow
    • Simple and reliable design
    • Low flow rate and cavitation can be used with Anti-cavitation kit.


    Service Fields:


    For water system, irrigation system.


    Technical Data:


    SizeDN50-DN800
    Working Temperature- 10C- 80C
    FlangeAISI B16.1 Or PN16
    Flow MediaClean Water

    Consult Factory for other applications
    IP68 for water resistance
    Comply with BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1


    Materials And Dimension


    DN50-DN350

    No.DescriptionMaterialStandard
    1BodyDuctile IronGJS500-7
    2SeatStainless SteelAISI304/316
    3O-ringRubberNBR
    4O-ringRubberNBR
    5BoltStainless SteelA2/A4
    6WasherStainless SteelA2/A4
    7BonnetDuctile IronGJS500-7
    8BushBronzeC61900
    9SpringStainless SteelAISI304/316
    10Caulking NutStainless SteelA4
    11DiaphragmNylon Reinforced RubberEPDM+Nylon Fabric
    12Fixing holderDuctile IronGJS500-7
    13Disc HolderDuctile IronGJS500-7
    14SealRubberEPDM
    15Seat RetainerStainless SteelAISI304/316
    16StemStainless SteelAISI304/316
    17PlugStainless SteelAISI304/316
    18ScrewStainless SteelA2/A4
    19PlugStainless SteelA2/A4
    20WasherStainless SteelA2/A4


    DN400-DN800


    No.DescriptionMaterialStandard
    1BodyDuctile IronGJS500-7
    2SeatStainless SteelAISI304/316
    3ScrewStainless SteelA2/A4
    4ScrewStainless SteelA2/A4
    5ScrewStainless SteelA2/A4
    6SpringStainless SteelAISI304/316
    7BonnetDuctile IronGJS500-7
    8BushBronzeC61900
    9O-ringRubberNBR
    10Fix WasherBronzeC61900
    11DiaphragmNylon Reinforced RubberEPDM+Nylon Fabric
    12Eye BoltsCarbon Steel1040
    13Fixing holderDuctile IronGJS500-7
    14Dics HolderDuctile IronGJS500-7
    15SealRubberEPDM
    16Seal RetainerDuctile IronGJS500-7
    17StemStainless SteelAISI304/316
    18PlugStainless SteelAISI304/316
    19O-ringRubberNBR
    20CapDuctile IronGJS500-7
    21PlugStainless SteelAISI304/316
    22ScrewStainless SteelA2/A4
    23O-ringRubberNBR
    24ScrewStainless SteelA2/A4
