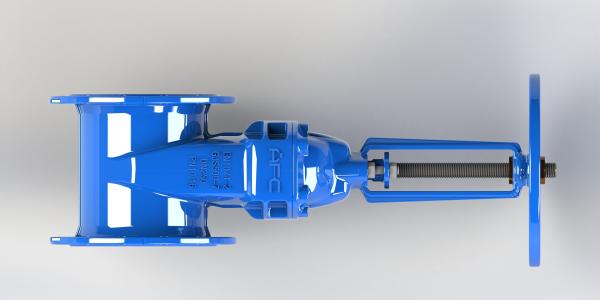

    Soft Sealing Ductile Iron Gate Valve Red / Blue Epoxy Coated

    Ask Lasest Price
    Brand Name : AFC, OEM
    Model Number : RAHX, RBBX, RBHX
    Certification : WRAS, ISO9001
    Price : Price negotiable
    Payment Terms : L/C, T/T
    Supply Ability : Based on order
    Delivery Time : 60 days for 2 container
    • Product Details
    • Company Profile

    Soft Sealing Ductile Iron Gate Valve Red / Blue Epoxy Coated

    Soft Sealing Ductile Iron Gate Valve For Water System/Cooling System Red/Blue Epoxy Coated


    Description:


    1. Manufacturing standard conform BS EN 1074, BS 5163, BS EN 1171.

    2. Face to Face meets standard: BS EN558-1.

    3. High-tech rubber curing with precise geometry dimensions, more resilient & strong adhesive to ductile casting.


    Service Field:


    Water supply, sewage, fire fighting, irrigation, water circulation, heat, cooling system.


    Feature:


    1. Body, Yoke and Bonnet are made of GSJ500-7.

    2. Wedge is totally vulcanized by EPDM.

    3. Rolled Stem thread.

    4. HW can be Carbon Steel or Ductile Iron.

    5. Long lasting service life.

    6. Nylon Guiding can reduce the torque.


    Quality System:


    IQCCheck call incoming parts
    IPQCCheck the production process is qualified
    FQCAll valves are pressure tested
    OQCCheck the valve ourlook and packing

    Technical Spec:


    SizeDN50-DN300
    Working Temperature- 10C- 80C
    FlangePN10/16
    Flow MediaWater, Sewage Water
    Face to FaceEN558-1

    Dimension:


    Material:
