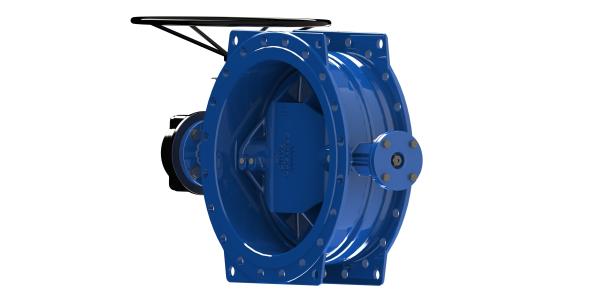

    DI Disc Stainless Steel Ring Butterfly Valve Epoxy Coated Worm Gear Available

    Ask Lasest Price
    Brand Name : AFC OEM
    Model Number : FBGD, FBBD, FBED,FBPD
    Certification : EN593
    Price : price
    Payment Terms : L/C, T/T
    Supply Ability : 2 containers in 60 days
    Delivery Time : Based on order
    • Product Details
    • Company Profile

    DI Disc Stainless Steel Ring Butterfly Valve Epoxy Coated Worm Gear Available


    DI Disc Stainless Steel Ring Butterfly Valve Epoxy Coated Worm Gear Available


    Description:

    AFC's Double Eccentric Flange Butterfly Valve is a newly advanced design butterfly valve. Due to double eccentric design and soft rubber seal on the body, the operational toque is one of the lowest among all the butterfly valves and can be sealed in both directions,disc and stem are very strong without any deformation.


    Size DN150-DN300mm,disc is flat shape, allowing bigger rubbish to flow by. DN350 to DN1200mm disc are arch shape with stronger ribs on the back, causing less compression and wearing of seal rubber to increase the life of rubber seal. Also, water head loss reduced a lot and turbulence minimized,thus flow through disc energy is saved and lowering the pumping cost.


    Feature:


    . The valve is made of DI body and DI disc.
    . Advanced newly design with dovetail seal design and captured by epoxy on the back, with multiple raised ring to have more contact with disc but less friction during closure.
    . The double eccentric design provides less contact area of seal with disc, and less stress at the open position of the disc.
    . The disc design with arch shape and thru disc can provide better flow capacity, stronger and less weight
    . The shaft and disc connection with tangential pin which can be exchangeable and provide
    rigid connection.
    . The DN 100-500MM use flat disc, and DN 600-1200MM use arch shape disc.
    . Epoxy coated interior and exterior.
    . Valve design meets or exceeds EN 593.
    . Top flange connection meets ISO 5211-1982, and F/F meets EN 558-1 series 13 & 14.


    Opening Degree VS Flow Coefficient Kv


    KV Value
    Opening degree
    DN102030405060708090
    1008122662124168311495624
    150135110317327644271910411184
    20017108191304488794126018542152
    250221773094857681242198928973363
    3002625245469810991786283542124843
    35033302622115217022203365261527302
    40051351751140221422822460276028402
    450554149521632252234025602896211002
    50067472107719222572458279221181214242
    600807501718306241007304126121880222682
    700978682168398251789272160522343228852
    800194139030365576776612702221523347246282
    900290176239026972958216822282224345252902
    10003622190505685021144221052361625210263402
    120050627336746122611597129201489027380290802

    Material


    DN100-DN500

    No.Part NameMaterialStandard
    1BodyDuctile IronGJS500-7
    2Lower ShaftStinless SteelAISI420/304/316
    3DiscDuctile IronGJS500-7
    4Main ShaftStainless SteelAISI420/304/316
    5Backup RingPlasticPTFE
    6Retaining PlateCarbon SteelCommercial
    7Shaft KeyCarbon SteelCommercial
    8In Hex BoltCarbon SteelCommercial
    9O-ringRubberNBR
    10Shaft BearingCarbon Steel+Bronze/PTFECommercial
    11In Hex BoltCarbon SteelCommercial
    12PinStainless SteelAISI431
    13In Hex BoltCarbon SteelCommercial
    14Shaft BearingCarbon Steel+Bronze/PTFECommercial
    15Position PlateDuctile IronGJS500-7
    16Hex BoltCarbon SteelCommercial
    17In Hex BoltCarbon SteelCommercial
    18Bottom FlangeDuctile IronGJS500-7
    19O-ringRubberNBR
    20Disc SeatStainless Steel/DI316SS L/GJS500-7+Epoxycoated
    21Body SeatRubberEPDM
    22WedgeEpoxyCommercial
    23OperatorWorm Gear OP.Commercial
    24Hex BoltStainless SteelAISI304

    DN600-DN1200

    No.Part NameMaterialStandard
    1BodyDuctile IronGJS500-7
    2Lower ShaftStinless SteelAISI420/304/316
    3DiscDuctile IronGJS500-7
    4Main ShaftStainless SteelAISI420/304/316
    5Backup RingPlasticPTFE
    6Retaining PlateCarbon SteelCommercial
    7Shaft KeyCarbon SteelCommercial
    8In Hex BoltCarbon SteelCommercial
    9O-ringRubberNBR
    10Shaft BearingCarbon Steel+Bronze/PTFECommercial
    11In Hex BoltCarbon SteelCommercial
    12PinStainless SteelAISI431
    13In Hex BoltCarbon SteelCommercial
    14Shaft BearingCarbon Steel+Bronze/PTFECommercial
    15Position PlateCarbon SteelCommercial
    16Hex BoltCarbon SteelCommercial
    17In Hex BoltCarbon SteelCommercial
    18Bottom FlangeDuctile IronGJS500-7
    19Thrust BearingSteelCommercial
    20O-ringRubberNBR
    21Disc SeatDI+Epoxy/Stainless Steel316SS L/GJS500-7+Epoxycoated
    22Body SeatRubberEPDM
    23WedgeEpoxyCommercial
    24OperatorWorm Gear OP.Commercial
    25Hex BoltStainless SteelAISI304

    Dimension:

    Unit:mm
    DNLH1H2H3φBΦkΦDnφdC
    #13#14PN10PN16PN10PN16PN10PN16PN10PN16PN10PN16
    100127190155155251561802208-φ1919
    150140210212215402112402858-φ2319
    200152230248250482662953408-φ2312-φ2320
    2501652502682804831935035540512-φ2312-φ2822
    3001782703223155037040041046012-φ2312-φ2824.5
    3501902903503355042946047052016-φ2316-φ2826.5
    4002163103753555548051552558016-φ2816-φ3128
    4502223304154055553054856558564020-φ2820-φ3130
    5002293504504255558260962065071520-φ2820-φ3431.5

    Top Flange (Gland) Standard ISO 5211
    DNISO5211a1b1c1φd1e1
    100F07154181215
    150F10256302018
    200F10318452518
    250F10318452520
    300F12368453018
    350F12368453025
    400F144612504025
    450F144612504025
    500F144612504025

    Unit:mm
    DNLH1H2H3φBΦkΦDn-φdC
    #13#14PN10PN16PN10PN16PN10PN16PN10PN16PN10PN16
    6002673905205255568272072577078084020-φ3120-φ373036
    7002924305655657579479484084089591024-φ3124-φ3732.539.5
    800318470640640759019019509501015102524-φ3424-φ403543
    90033051071871810010011001105010501115112528-φ3428-φ4037.546.5
    100041055078578511011121112116011701230125528-φ3728-φ434050
    120047063094094011013281328138014551455148532-φ4032-φ494557
    Top Flange (Gland) Standard ISO 5211
    DNISO5211a1b1c1φd1e1
    PN10PN16
    600F165214504525
    700F166818706025
    800F16F256818706025
    900F259022908030
    1000F251122810010028
    1200F251122810010028
