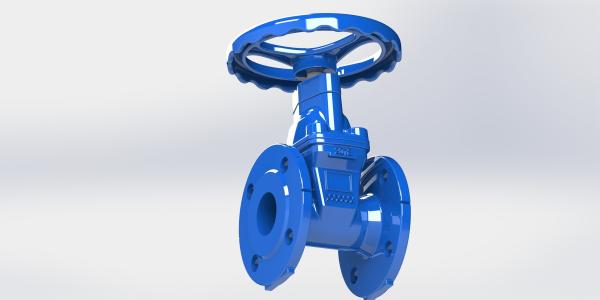

    Non Rising Stem Water Gate Valve WRAS Approved Top Cap Operated

    Ask Lasest Price
    Brand Name : AFC, OEM
    Model Number : GBBX, GBHX, GBCX
    Certification : EN1074-2, ISO9001
    Price : Price negotiable USD RMB
    Payment Terms : L/C, T/T
    Supply Ability : 2 containers in 60 days
    Delivery Time : Based on Order
    • Product Details
    • Company Profile

    Non Rising Stem Water Gate Valve WRAS Approved Top Cap Operated


    Non Rising StemResilient Seated Water Gate Valve Handwheel Or Top Cap Operated


    Description:

    Resilient seated gate valve has soft seal wedge that provides both sides sealing function. The valve is designed with new technology for light operating. When the valve is opened, there will be no clogging and no corrosion becuase full flow area.The rubber wedge has good resilient memory & long service life. It can be used extensively in all kinds of water supply & sewage, fire-fighting and function as an isolation valve.


    Features:


    • The material is high grade ductile Iron GJS500-7


    • Disc is made of an abrasion resistant nylon guide which can help less opening or closing torgue and smooth during operation.

    1. EPDM fully vulcanized

    2. WRAS approved


    • Forged stem provide stronger stem operation and less moving parts.

    1. SS420 / 431

    2. Platform provide better strength


    • Disc is covered by high-grade rubber which suitable for drinking water.


    • High-tech rubber curing with precise geometry dimensions, more resilient & strong adhesive to ductile casting.


    • The 4 O-ring stem seals are designed to prevent stem leakage. and provide replacement of the O-ring without disassambling of valve from mainline pipes.


    • Inside & outside are coated with epoxy resin powder.


    • Manufacturing standard : BS EN 1074-1, EN1074-2, BS 5163, BS EN 1171.


    • F/F (Face to Face) : BS EN558-1.


    • Bolts are protected by silicon glue.


    SizeDN50-DN600
    Working Temperature- 10C- 80C
    FlangePN10/16
    Flow MediaWater, Sewage Water
    Face to FaceEN558-1

    No.Part NameMaterialStandard
    1BodyDuctile IronENGJS500-7
    2Wedge NutBronzeCA103
    3StemStainless SteelAISI431
    4GasketRubberEPDM
    5BonnetDuctile IronENGJS500-7
    6O-ringRubberNBR
    7O-ringRubberNBR
    8Dust WlperRubberNBR
    9WasherStainless SteelAISI304
    10Hex BoltStainless SteelAISI304
    11Hand WheelCarbon SteelCommercial
    12GlandDuctile IronENGJS500-7
    13In Hex BoltCarbon SteelCommercial
    14BushingBrassCZ122
    15O-ringRubberNBR
    16In Hex BoltCarbon SteelCommercial
    17 Ductile IronENGJS500-7
    18CapCarbon SteelCommercial
    19WedgeDuctile Iron+Vulcanized RubberENGJS500-7+EPDM
    20GuldePlasticNylon 66
