Brand Name : | AFC |
Model Number : | A500 |
Certification : | EN1074-5 |
Price : | USD / RMB |
Payment Terms : | L/C, T/T |
Supply Ability : | Based on order |
Delivery Time : | 15-60 days |

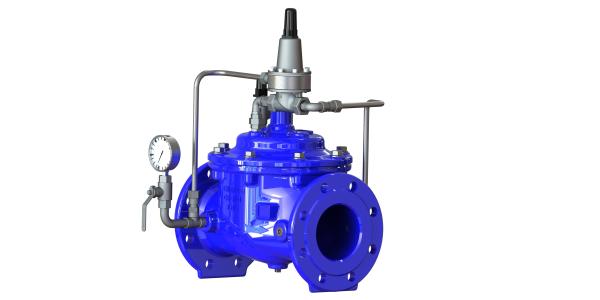

Nylon Reinforcement Diaphragm EPOXY Coated Water Pressure Sustaining Relief Valve Stainless Steel 304 Pilot Operated
Description:
A500 is a hydraulically operated, diaphragm actuated control valve that can fulfill either of two separate functions. When installed in-line, it sustains minimum pre-set, upstream (back) pressure regardless of fluctuating flow or varying downstream pressure. When installed as a circulation valve, it relieves excessive line pressure when above maximum pre-set.
Features:
• Accurate Pressure Control
• Optional Check Feature
• Fast Opening to Maintain Line Pressure
• Completely Automatic Operation
Size | DN50-DN800 |
Working Temperature | - 10C- 80C |
Flange | AISI B16.1 Or PN16 |
Flow Media | Clean Water |
Materials And Dimension
DN50-DN350
DN400-DN800
![]() |
