    AWWA C512 Combination Air Release Valve For Sewage Water System

    Ask Lasest Price
    Brand Name : AFC OEM
    Model Number : KARX KARR KARS ARVS
    Certification : AWWA C512
    Price : USD RMB
    Payment Terms : L/C, T/T
    Supply Ability : 60 days for two containers
    Delivery Time : Based on order
    • Product Details
    • Company Profile

    AWWA C512 Combination Air Release Valve For Sewage Water System

    SS304 Internals AWWA C512 Combination Air Release Valve Triple Function Full Flow Area Single Chamber

    Description:


    Combination kinetic air release valve provide 3 functions:

    1. Large air release

    2. Small air release

    3. Large air intake during draining of the pipeline.


    Float Sterngth:


    • Max. float test
    • DN 50-80 = 70 Bar
    • DN 100-300=51 Bar

    Suggesting installation place


    1. Pump discharge before the check valve

    2. On long ascending of 1/4 to 1/2 miles (400m to 800m) interval

    3. At peak or sharp change


    Size Selection Table:


    Water flow rate range
    Max CMH
    760136041608500191003340076300
    Main pipeline size
    mm
    80-300200-400400-700750-10001050-15001500-20002100-3000
    Inlet size of KARX
    mm
    255080100150200300
    bore of outlet
    mm
    507595130170230330
    small orifice size
    mm
    1.61.622.534
    4



    Material List:

    KARS ( Thread Type DN25-DN50)




    KARX ( Flange Type DN50-DN300)

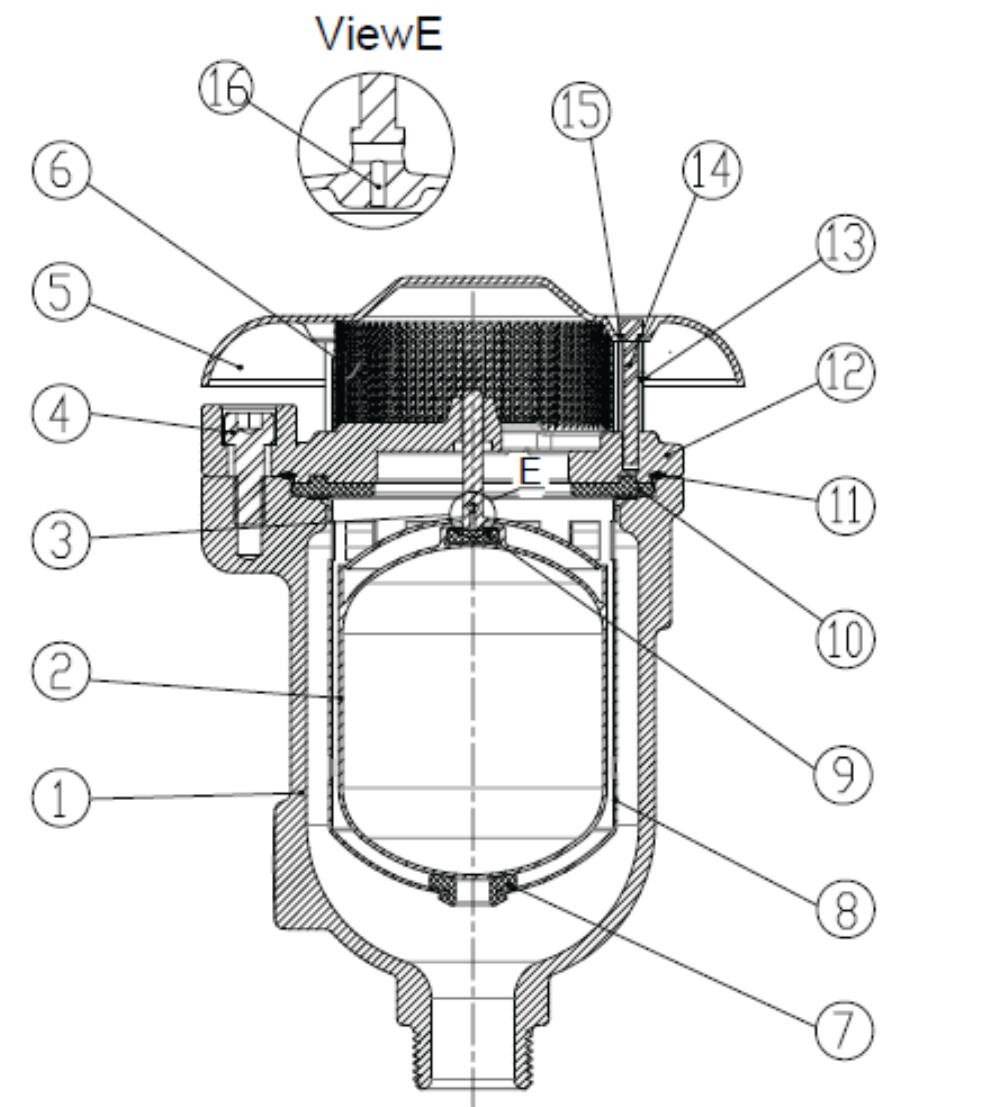

    Dimension:

    KARS ( Thread Type DN25-DN50)



    KARX ( Flange Type DN50-DN300)

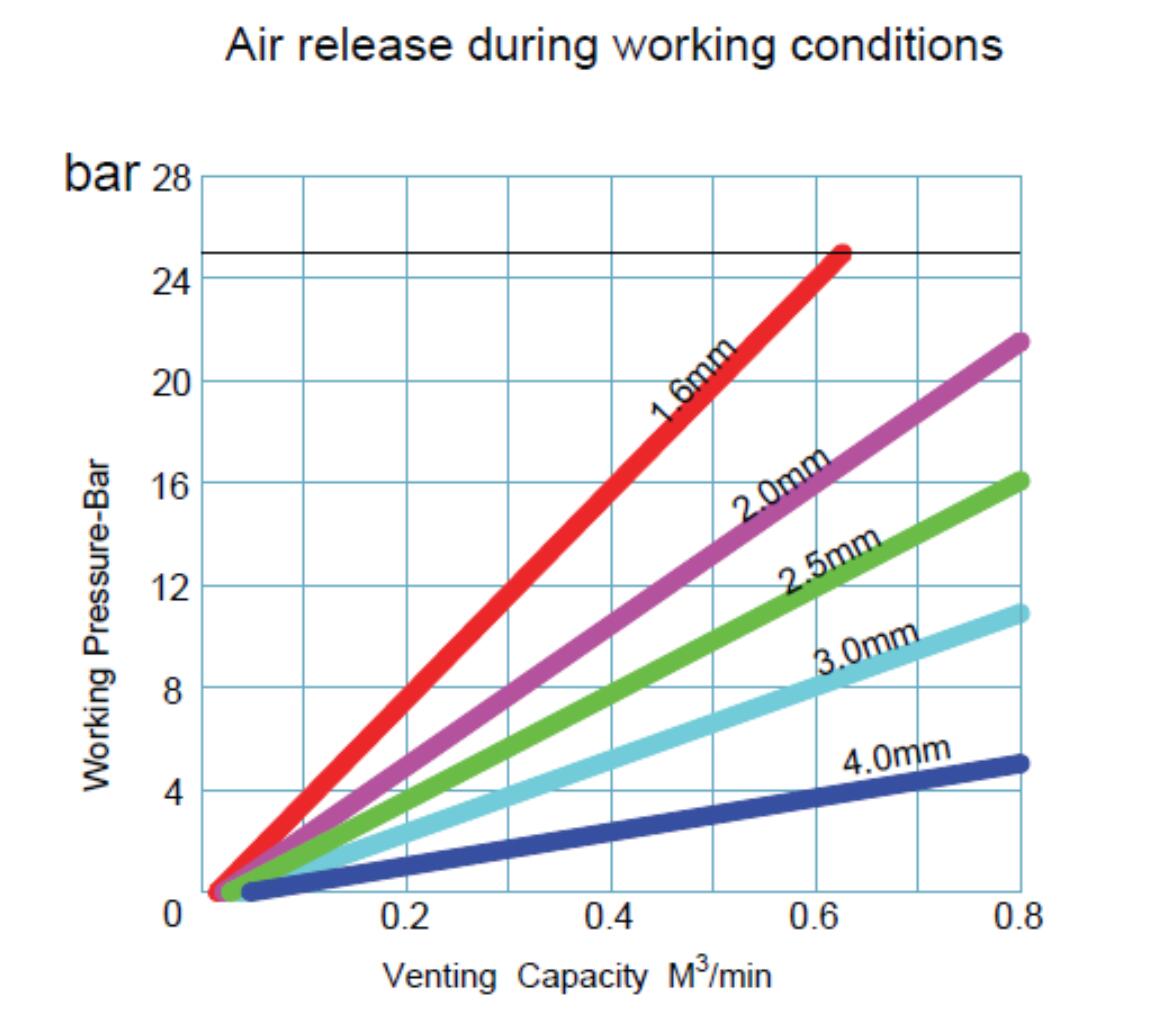

    Air Flow Characteristic

    Large Air Exhausting


    Air Intake



    Small air venting
