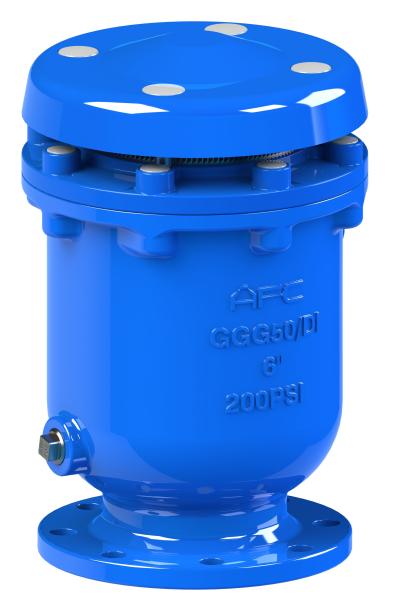

    Ductile Iron Combination Air Release Valve For Water Systems Stainless Steel Float

    Ask Lasest Price
    Brand Name : AFC OEM
    Model Number : KARX KARR KARA
    Certification : WRAS NSF61/372
    Payment Terms : L/C, T/T
    Supply Ability : Based on order
    Delivery Time : 45-60 days
    Price : USD RMB
    • Product Details
    • Company Profile

    Ductile Iron Combination Air Release Valve For Water Systems Stainless Steel Float


    Triple function, large air exhausting, small air venting, vacuum breaker, Anti-shock, Combination air release valve​



    . Advanced design with simple mechanism, strong fl oat to prevent cracking during sudden water hammer& quick closure.
    . Aerokinetic mechanism to resist blow shut under higher air velocity even up to sonic velocity of air.
    . No arms or levers to prevent vibrating, bending, direct closure of the fl oat.
    . Smooth cage outside of the fl oat, keep float moving in specifi ed guide rail.
    . Bottom rubber buffer for collision prevention, and drain easy with proper holes around the cage during vacuum.
    . Outside screen will be an option for safety and prevent insects or birds in.
    . Fully fusion epoxy coated inside and outside of valve body for long term services.
    . Manufacturing standard meets BS EN1074-4, AWWA C512
    . Flange drilling and dimension meets BS EN 1092 and BS EN 558 and ANSI flange.

    Service Fields:
    For water system, fire fighting, irrigation system.

    Technical Data:
    Size range:DN 25-300MM
    Pressure ratings:1.0Mpa, 1.6Mpa(Thread)
    1.0Mpa,1.6Mp,2.5 Mpa(Flange)
    Working temperature: -10°-80°C.
    Flow media: clean water


    Size Selection Table:


    Water flow rate range
    Max CMH
    760136041608500191003340076300
    Main pipeline size
    mm
    80-300200-400400-700750-10001050-15001500-20002100-3000
    Inlet size of KARX
    mm
    255080100150200300
    bore of outlet
    mm
    507595130170230330
    small orifice size
    mm
    1.61.622.534
    4

    Material List:


    KARS ( Thread Type DN25-DN50)



    KARX ( Flange Type DN50-DN300)



    Dimension:


    KARS ( Thread Type DN25-DN50)




    KARX ( Flange Type DN50-DN300)




    Air Flow Characteristic


    Large Air Exhausting


    Air Intake



    Small air venting
