NSF61 Drinking Water Approved AWWA C504 Double Flange Double Eccentric Butterfly Valve

Description:

Double Eccentric Flange Type Butterfly Valve with worm gear (we call abbreviated FBGD) is a newly advanced design butterfly valve. With double eccentric design and soft rubber seal on the body, the operational toque is one of the lowest among all the butterfly valves and can be sealed in both directions,disc and stem are very strong without any deformation.

Dovetail seal design with multiple groove and internal epoxy stuffed, more than two ways of rubber extension space brings less compression and wearing between disc and soft seat and prevents the rubber seal to be blowed out.

Features:

Special Bearing:

Bearing-CS base coated with bronze + PTFE interior and tin exterior

Tin have a better electrolyte character, prevent rusting

Stronger than bronze bearing and last longer

Online repairing by EPOXY:

The special technology can help user to repair the Double Eccentric Flange Butterfly Valve without taking the valve out of the pipeline. The user only needs to repair it from the exterior of the butterfly valve without going into the pipeline. Please consult the factory and we will show you how to repair the BV when the rubber seal is damaged.

Arch shape disc design :

Flow thru disc-energy saving, lower pumping cost

Reduce head loss and minimize turbulence

Rubber Seat:

Multi ribs on the seal-reduce operation torque

Seal fixed in the groove and epoxy on the back side as a wedge, no worry of loosen

No need bolting and permanent positioned , decrease nut loose & hole rusting

Epoxy injected on the backside of groove

Dovetail design can tight the rubber seal

Operation Torque:

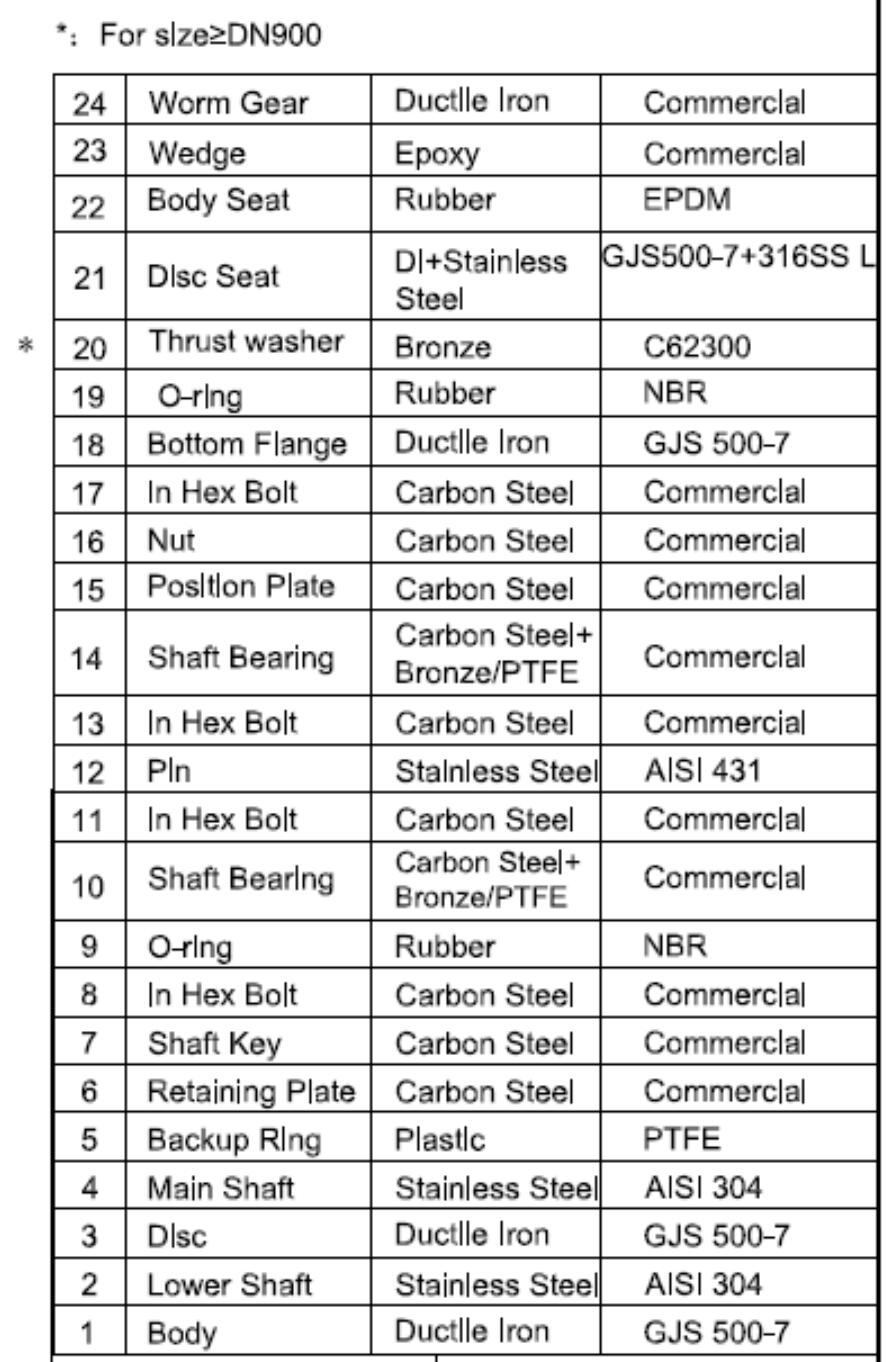

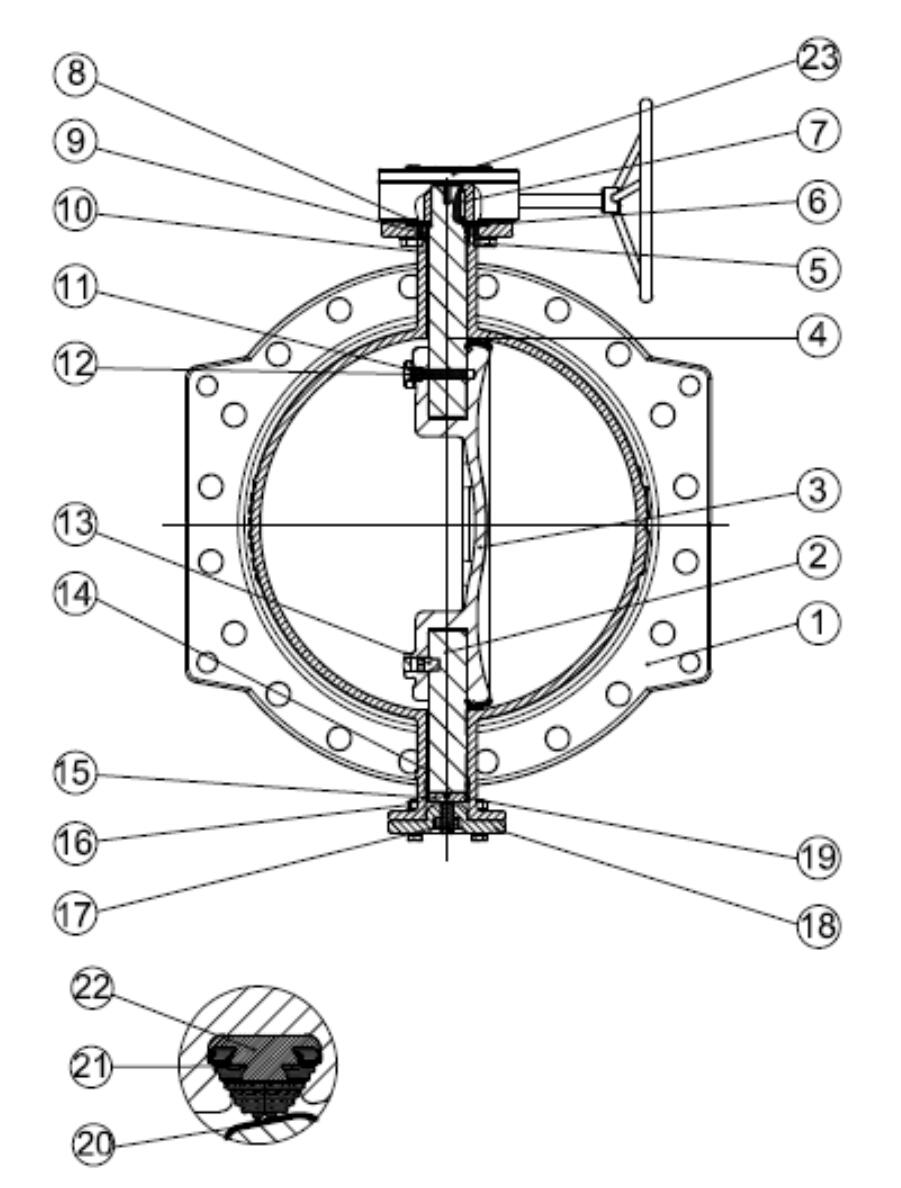

Materials:

Dimension:

Alpine Flow Control (SuZhou) Co.,Ltd with major focus in the water valve design and manufacturing. The Management staff have over 30 years experience in the water valve design and manufacturing, combined with the high-tech electronics manufacturing experience of multi-national listed companies. This unique combination of traditional and high-tech industry management experience and skills have given us an advantage over the traditional valve manufacturer. More than 40% of our staff are technical staff with knowledge and experience in valve and mechanical design/manufacturing...

Proven and supported by on-going quality and reliability test. AFC has built it’s own in house reliability test laboratory to ensure that our products not only meet the international quality and reliability test specification such as the EN-1074-1/2 T-key and R-key test, but also comply to various international valves standards and specifications.


We already achieved WRAS certificate in 2011, and obtained FM approval in early of 2012,
and UL for gate valve. Today, we have got many international famous certificate for drinking water such as WRAS, NSF, AS, CE on certain products, and our product range has expended to double eccentric butterfly valve, rubber disc check valve ,non-slam check valve, both clean water & sewage water air valve, hydraulic control valve and penstock and we always focus on water system valves.


In 2018 year, our big plan is developing pressure management valves which has been proved to be a very helpful tool and economic way to save the leakage rate with limited investment and get a fast return in couple months and power savings

In addition, we have a special project team to focus on custom design and special requirement
