    Triple Function Blue Sewage Air Release Valve For Sewage Water System

    Ask Lasest Price
    Brand Name : AFC OEM
    Model Number : SKAR
    Certification : ISO9001-2015
    Price : USD RMB
    Payment Terms : L/C, T/T
    Supply Ability : Based on order
    Delivery Time : 45-60 days
    • Product Details
    • Company Profile

    Triple Function Blue Sewage Air Release Valve For Sewage Water System


    Triple Function Large Air Exhausting Small air venting vacuum breaker Combination Sewage Air Release Valve​


    Feature


    Combination kinetic air release valve provide 3 functions:


    1.Large air release during fi lling of the pipeline.

    2.Small air release under pressurized pipeline.
    3.Large air intake during draining of the pipeline.


    . Advanced design with simple mechanism, strong float to prevent cracking during sudden water hammer& quick closure.
    . Aerokinetic mechanism to resist blow shut under higher air velocity even up to sonic velocity of air.
    . No arms or levers to prevent vibrating, bending, direct closure of the fl oat.
    . Smooth cage outside of the float, keep float moving in specifi ed guide rail.
    . Bottom rubber buffer for collision prevention, and drain easy with proper holes around the cage during vacuum.
    . Outside screen will be an option for safety and prevent insects or birds in.
    . Fully fusion epoxy coated inside and outside of valve body for long term services.
    . Manufacturing standard meets BS EN1074-4, AWWA C512
    . Flange drilling and dimension meets BS EN 1092 and BS EN 558 and ANSI flange.


    Service Fields:


    For sewage water system.


    Technical Data:


    Size range: DN 50-200MM
    Pressure ratings:1.0Mpa,1.6Mp (Flange)
    Working temperature: -10°-80°C.
    Flow media: sewage water.
    Please consult factory for PN25 and antishock device whenever there is waterhammer issue.


    Quick Selection Table
    Water Flow Rate
    CMH
    1360416085001910033400
    Main pipe size
    MM
    80-400400-700750-10001050-15001500-2000
    Size of SKAR
    MM
    5080100150200

    Material:

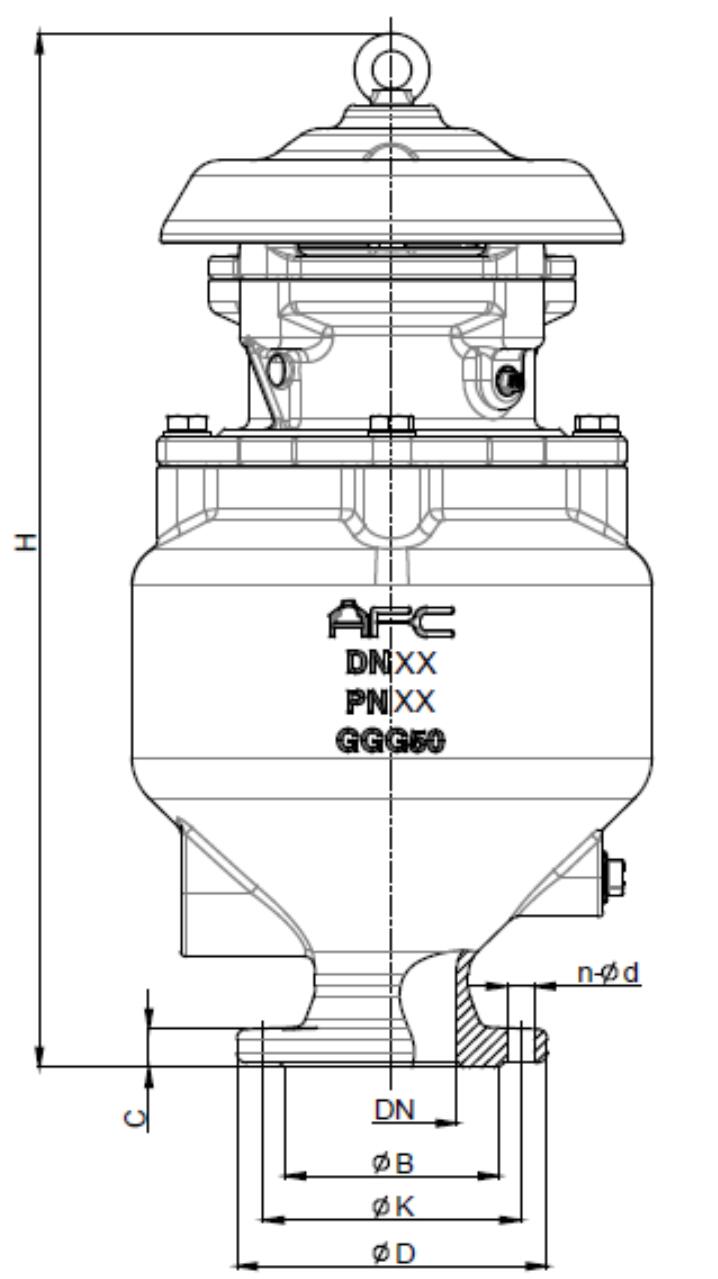

    Dimension:
