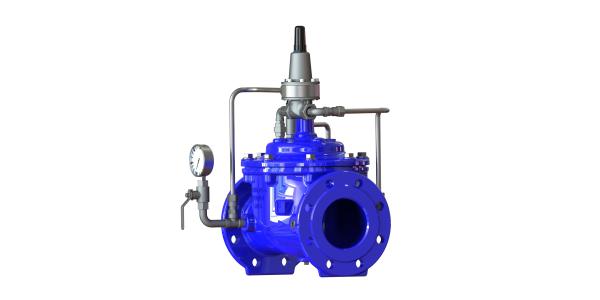

    Pilot Operated Blue Pressure Sustaining Valve With Nylon Reinforcement Diaphragm

    Ask Lasest Price
    Brand Name : AFC
    Model Number : A500
    Certification : EN1074-5
    Price : USD / RMB
    Payment Terms : L/C, T/T
    Supply Ability : Based on order
    Delivery Time : 15-60 days
    • Product Details
    • Company Profile

    Pilot Operated Blue Pressure Sustaining Valve With Nylon Reinforcement Diaphragm


    Nylon Reinforcement Diaphragm And Pilot Operated Water Pressure Sustaining Relief Valve With EPOXY Coated


    Description:


    A500 Pressure Sustaining / Relief valve can perform following functions.


    1.pressure relief valve

    1-1.When system pressure exceeds pre-set pressure, main valve will open immediately.

    1-2.When system pressure lower than pre-set pressure, main valve will close slowly.

    1-3.The pump start up or shut down will always generate surge


    2. pressure sustaining valve:

    2-1.To keep upstream flow area above min. setting pressure

    2-2.Can provide water for both area- synchronous transmission


    Feature:


    Accurate Pressure Control
    Fast Opening to Maintain Line Pressure
    Completely Automatic Operation

    Nylon reinforced diaphragm for long term sevice.

    Ductile iron bodies for higher strength and durability.

    Meet standards BS EN 1074-5, ISO5208, BS EN 12266-1, BS EN 558-1

    Top and seat ring guided stem and diaphragm assembly for long life and reliability.


    SizeDN50-DN800
    Working Temperature- 10C- 80C
    FlangeAISI B16.1 Or PN16
    Flow MediaClean Water

    Materials And Dimension


    DN50-DN350



    DN400-DN800
