    Hydraulically Operated Differential Pressure Pilot , Diaphragm Differential Pressure Pilot

    Ask Lasest Price
    Brand Name : AFC
    Model Number : P800
    Certification : ISO 9001
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : Based on order
    Delivery Time : 10-60 days
    • Product Details
    • Company Profile

    Hydraulically Operated Differential Pressure Pilot , Diaphragm Differential Pressure Pilot


    Stainless Steel 304 Control Valve Accessories Diaphragm Differential Pressure Pilot​​


    The P800 is a differential pressure pilot. It can help A800 which is a differential Pressure Relief Valve is a hydraulically operated, pilot-controlled, modulating valve. It is designed to maintain a constant pressure differential between any two pressure points in a system where the closing of the valve directly causes
    the differential pressure to increase. The valve tends to open on an increase in differential pressure and close on a decrease in differential pressure.

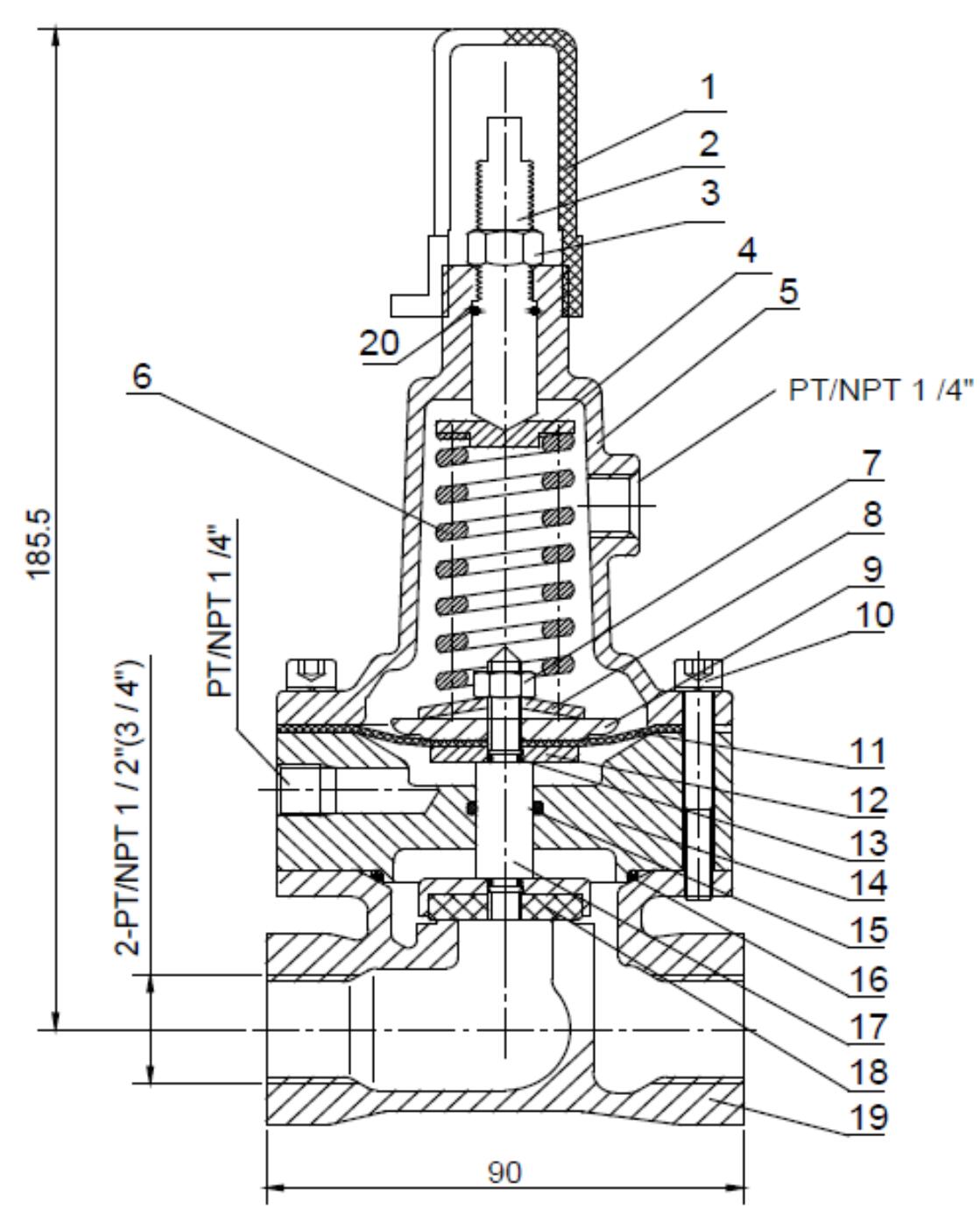

    No.DescriptionMaterialStandard
    1CapPlasticABS
    2Adjusting ScrewStainess SteelAISI304
    3Jam NutStainess SteelAISI304
    4Spring tableStainess SteelAISI304
    5BonnetStainess SteelAISI304
    6SpringSpring SteelSiCrV
    7NutStainess SteelA2
    8Spring tableSpring SteelMn-steel+Ni Plated
    9Fixing HolderStainess SteelAISI 304
    10ScrewStainess SteelA2
    11DiaphragmNylon Reinforced RubberEPDM+Nylon
    12GasketStainess SteelAISI304
    13O-ringRubberNBR
    14Internal BodyStainess SteelAISI304
    15O-ringRubberNBR
    16O-ringRubberNBR
    17StemStainess SteelAISI304
    18DiscStainess Steel+RubberAISI304+EPDM
    19BodyStainess SteelAISI304
    20O-ringRubberNBR
